Model #40RA100M
Product Specifications & Parameters
Primary Specficiations
| | |
|---|
| Speakers Environment | Outdoor | |
| ROHS Compliant | No | |
Technical Specifications
| | UNIT of MEASURE |
|---|
| Nominal Basket Diameter |
1.6 / 40.0 |
inch / mm |
| Rated Impedance | 100 | ohms |
| Rated Power | 0.1 | Watts |
| Program Power | 0 | Watts |
| Frequency Range | 600 - 8500 | Hz |
Sensitivity
(2.83 V input measured at 1 Meter) | 82 | dB SPL |
| Voice Coil Diameter | 0.6 / 15.2 | inch / mm |
| Magnet Weight | 0.35 / 0.0 | oz / gr |
Small Signal Parameters
| | UNIT of MEASURE |
|---|
| Resonant Frequency (fo) | 600 | Hz |
| D.C. Resistance (Re) | 85.0 | ohms |
| Mechanical Q (Qms) | 2.6 | |
| Electrical Q (Qes) | 15.99 | |
| Total Q (Qts) | 2.26 | |
| Compliance Equivalent Volume (Vas) | | ltr |
| BL Product (BL) | | T-M |
| Maximum Linear Excursion (Xmax) | | mm |
| Surface Area of Cone (Sd) | | cm2 |
Material Descriptions
| |
|---|
| Basket | Stamped Steel |
| Terminal Size | 0.12 X 0.02 |
| Magnet | Alnico |
| Voice Coil Wire | Copper |
| Voice Coil Form | Paper |
| Cone | Mylar |
| Cone Edge | Mylar |
| Dust Cap | Mylar |

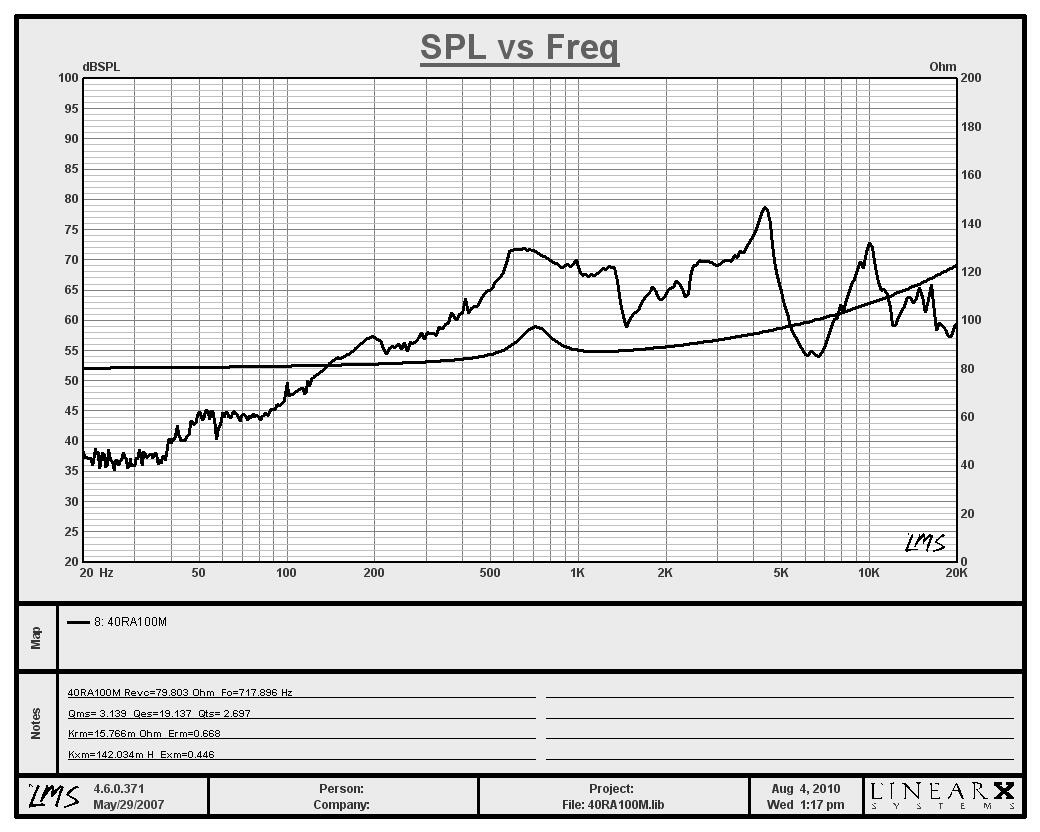

Sensitivity / Frequency
Drawing
| ID | Description | Measurements | Tolerance |
|---|
| OD | Outside Diameter | 1.6 in. | +/- 0.020” |
| CD | Cutout Diameter | 1.4 in. | +/- 0.020” |
| MG | Magnet Diameter | 0.71 in. | +/- 0.050” |
| HD | Hole Diameter | | +/- 0.010” |
| MD | Mounting Diameter | | +/- 0.010” |
| ID | Internal Depth | 0.6 in. | +/- 0.025” |
| FT | Flange Thickness | 0.1 in. | +/- 0.050” |
| NW | Net Weight | 22.0 |
