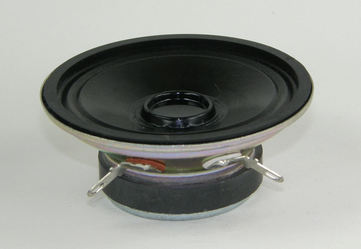

57RFT-8A-CC
Key Features:
  • 2.2" (57 mm), 8 ohm
  • 4 watts
  • Ferrite magnet, black phenolic treated cloth cone with glass fiber surround
  • RoHS Compliant;

Primary Specifications

Speakers Environment Outdoor
ROHS Compliant Yes

Technical Specifications

UNIT of MEASURE
Nominal Basket Diameter 2.2 / 57.0 inch / mm
Rated Impedance 8 ohms
Rated Power 4.0 Watts
Program Power 8 Watts
Frequency Range 1250 - 13,000 Hz
Sensitivity
(2.83 V input measured at 1 Meter)
99 dB SPL
Voice Coil Diameter 0.6 / 15.2 inch / mm
Magnet Weight 0.8 / 23 oz / gr
Transformer

Small Signal Parameters

UNIT of MEASURE
Resonant Frequency (fo) 1250 Hz
D.C. Resistance (Re) 6.8 ohms
Mechanical Q (Qms) 12.5
Electrical Q (Qes) 20.42
Total Q (Qts) 7.76
Compliance Equivalent Volume (Vas) ltr
BL Product (BL) T-M
Maximum Linear Excursion (Xmax) mm
Surface Area of Cone (Sd) cm2
Moving Mass (Mmd) g

Material Descriptions


Basket Stamped Steel
Terminal Size 0.110 X 0.02
Magnet Ferrite
Voice Coil Wire Copper
Voice Coil Form Paper
Cone black phenolic treated cloth
Cone Edge Black Phenolic Treated Cloth
Dust Cap Mylar

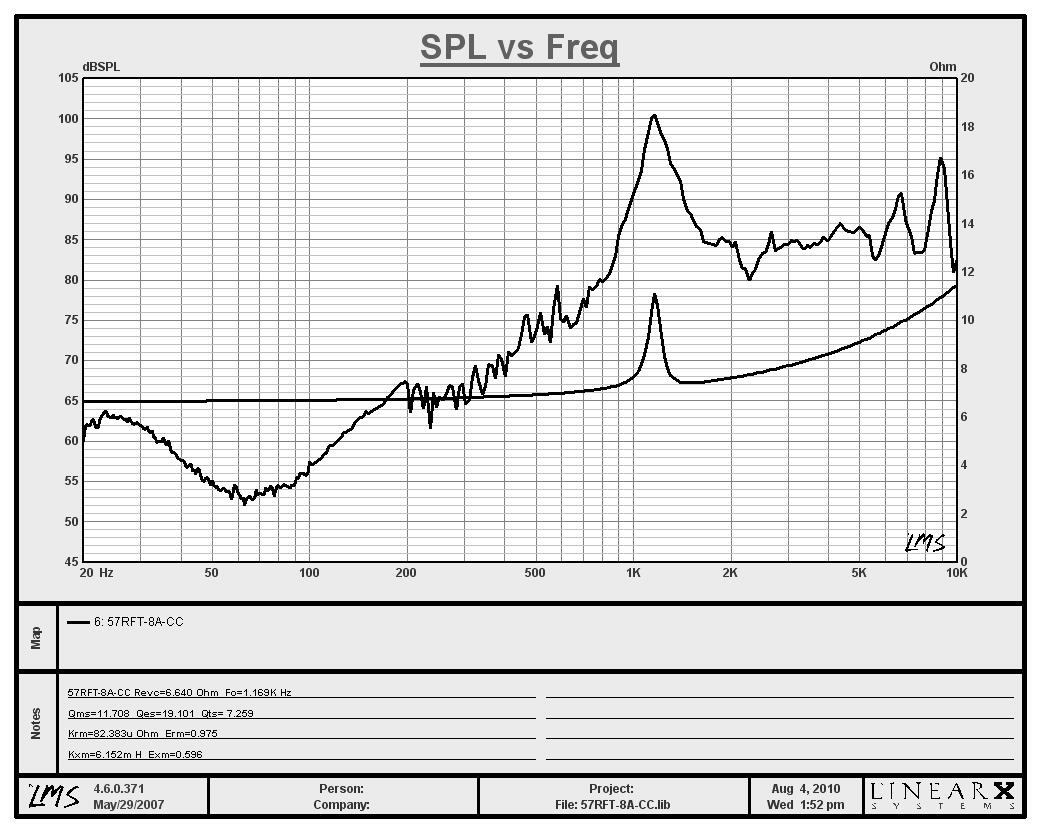

http://s3.amazonaws.com/misco/curves/57RFT-8A-CC.JPG?1345609688
ID Description Measurements Tolerance
OD Outside Diameter 2.3 in. +/- 0.040”
CD Cutout Diameter 2.0 in. +/- 0.030”
MG Magnet Diameter 1.4 in. +/- 0.050”
HD Hole Diameter +/- 0.020”
MD Mounting Diameter +/- 0.020”
ID Internal Depth 0.9 in. Maximum
FT Flange Thickness 0.1 in. +/- 0.050”
NW Net Weight 80.0 g
ceramic
