Model #J10PA-8D
Product Specifications & Parameters
Primary Specifications
| | |
|---|
| Speakers Environment | Indoor | |
| ROHS Compliant | No | |
Technical Specifications
| | UNIT of MEASURE |
|---|
| Nominal Basket Diameter |
10.0 / 257.0 |
inch / mm |
| Rated Impedance | 8 | ohms |
| Rated Power | 25 | Watts |
| Program Power | 50 | Watts |
| Frequency Range | 70 - 6000 | Hz |
Sensitivity
(2.83 V input measured at 1 Meter) | 97 | dB SPL |
| Voice Coil Diameter | 0.8 / 20.3 | inch / mm |
| Magnet Weight | 6.8 / 193 | oz / gr |
Small Signal Parameters
| | UNIT of MEASURE |
|---|
| Resonant Frequency (fo) | 100 | Hz |
| D.C. Resistance (Re) | 6.6 | ohms |
| Mechanical Q (Qms) | 15.4 | |
| Electrical Q (Qes) | 2.23 | |
| Total Q (Qts) | 1.95 | |
| Compliance Equivalent Volume (Vas) | 325.0 | ltr |
| BL Product (BL) | 5.1 | T-M |
| Maximum Linear Excursion (Xmax) | 0.5 | mm |
| Surface Area of Cone (Sd) | | cm2 |
Material Descriptions
| |
|---|
| Basket | Stamped Steel |
| Terminal Size | 0.205 x 0.02 |
| Magnet | Alnico |
| Voice Coil Wire | Copper |
| Voice Coil Form | Nomex |
| Cone | Paper |
| Cone Edge | Paper |
| Dust Cap | Felt |

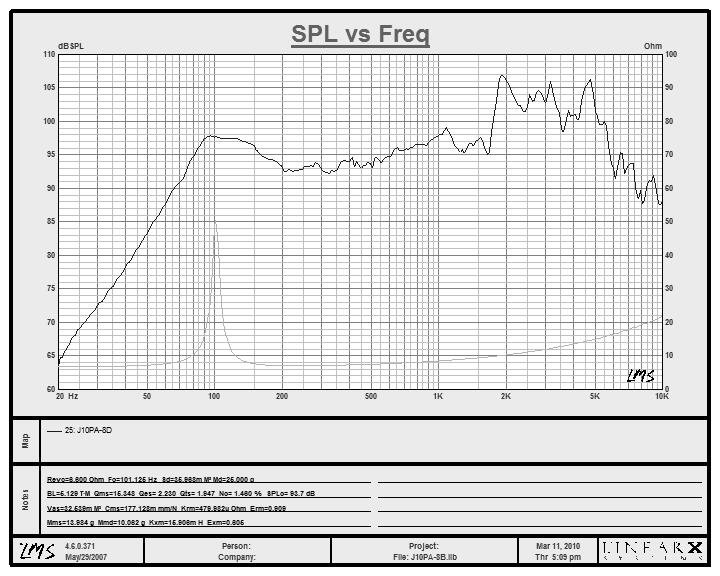

Sensitivity / Frequency
Drawing
| ID | Description | Measurements | Tolerance |
|---|
| OD | Outside Diameter | 10.1 in. | +/- 0.020” |
| CD | Cutout Diameter | 9.3 in. | +/- 0.020” |
| MG | Magnet Diameter | 2.8 in. | +/- 0.050” |
| HD | Hole Diameter | 0.3 in. | +/- 0.010” |
| MD | Mounting Diameter | 9.6 in. | +/- 0.010” |
| ID | Internal Depth | 4.6 in. | +/- 0.025” |
| FT | Flange Thickness | 0.2 in. | +/- 0.050” |
| NW | Net Weight | 1331.0 g |
