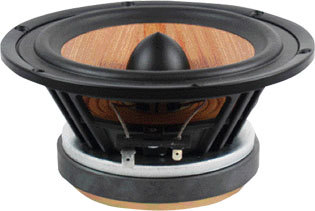

Model #LC62W-8B
Product Specifications & Parameters
Primary Specifications
| | |
|---|
| Speakers Environment | Indoor | |
| ROHS Compliant | No | |
Technical Specifications
| | UNIT of MEASURE |
|---|
| Nominal Basket Diameter |
6.5 / 165.0 |
inch / mm |
| Rated Impedance | 8 | ohms |
| Rated Power | 50 | Watts |
| Program Power | 100 | Watts |
| Frequency Range | 30 - 6000 | Hz |
Sensitivity
(2.83 V input measured at 1 Meter) | 88 | dB SPL |
| Voice Coil Diameter | 1.5 / 38.1 | inch / mm |
| Magnet Weight | 20.0 / 568 | oz / gr |
Small Signal Parameters
| | UNIT of MEASURE |
|---|
| Resonant Frequency (fo) | 38 | Hz |
| D.C. Resistance (Re) | 6.0 | ohms |
| Mechanical Q (Qms) | 3.8 | |
| Electrical Q (Qes) | 0.3 | |
| Total Q (Qts) | 0.27 | |
| Compliance Equivalent Volume (Vas) | 26.0 | ltr |
| BL Product (BL) | 6.8 | T-M |
| Maximum Linear Excursion (Xmax) | 7.0 | mm |
| Surface Area of Cone (Sd) | | cm2 |
Material Descriptions
| |
|---|
| Basket | Cast Aluminum |
| Terminal Size | 0.25 X 0.03/ 0.19 X 0.02 |
| Magnet | Ferrite |
| Voice Coil Wire | Copper |
| Voice Coil Form | Aluminum |
| Cone | Real Wood |
| Cone Edge | Rubber |
| Dust Cap | Phase Plug |

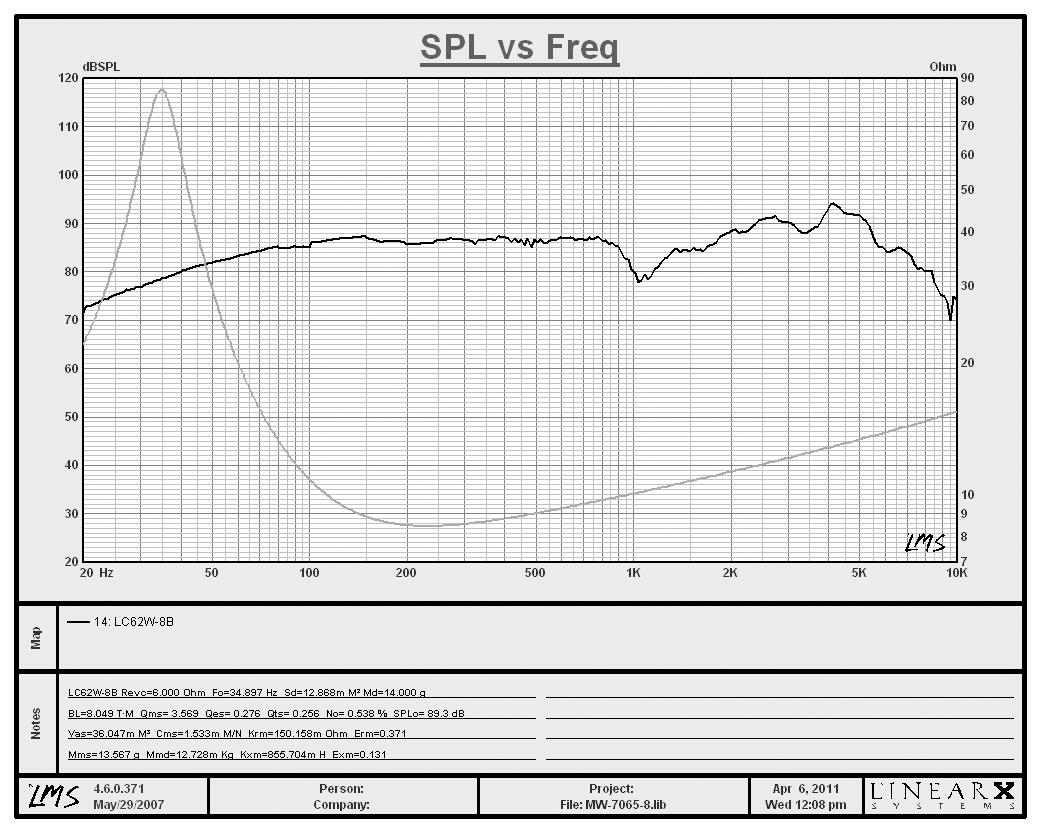

Sensitivity / Frequency
Drawing
| ID | Description | Measurements | Tolerance |
|---|
| OD | Outside Diameter | 6.8 in. | +/- 0.020” |
| CD | Cutout Diameter | 5.75 in. | +/- 0.020” |
| MG | Magnet Diameter | 4.55 in. | +/- 0.050” |
| HD | Hole Diameter | 0.17 in. | +/- 0.010” |
| MD | Mounting Diameter | 6.375 in. | +/- 0.010” |
| ID | Internal Depth | 3.25 in. | +/- 0.025” |
| FT | Flange Thickness | 0.27 in. | +/- 0.050” |
| NW | Net Weight | 2.1 g |
