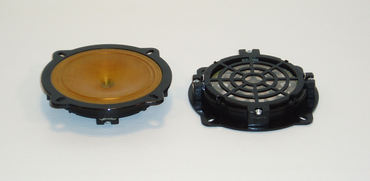

Model #MP-1103
Product Specifications & Parameters
Primary Specficiations
| | |
|---|
| Speakers Environment | Indoor | |
| ROHS Compliant | No | |
Technical Specifications
| | UNIT of MEASURE |
|---|
| Nominal Basket Diameter |
4.0 / 100.0 |
inch / mm |
| Rated Impedance | 1000 | ohms |
| Rated Power | 50.0 | Watts |
| Program Power | 100 | Watts |
| Frequency Range | 450 - 20000 | Hz |
Sensitivity
(2.83 V input measured at 1 Meter) | 80 | dB SPL |
| Voice Coil Diameter | 0.0 / 0.0 | inch / mm |
| Magnet Weight | 0.0 / 0.0 | oz / gr |
Small Signal Parameters
| | UNIT of MEASURE |
|---|
| Resonant Frequency (fo) | 600 | Hz |
| D.C. Resistance (Re) | 1000.0 | ohms |
| Mechanical Q (Qms) | | |
| Electrical Q (Qes) | | |
| Total Q (Qts) | | |
| Compliance Equivalent Volume (Vas) | | ltr |
| BL Product (BL) | | T-M |
| Maximum Linear Excursion (Xmax) | | mm |
| Surface Area of Cone (Sd) | | cm2 |
Material Descriptions
| |
|---|
| Basket | Plastic |
| Terminal Size | 0.205 X 0.02 |
| Magnet | Piezo Element |
| Voice Coil Wire | None |
| Voice Coil Form | None |
| Cone | Phenolic Treated Yellow |
| Cone Edge | Phenolic Treated Yellow |
| Dust Cap | None |
Drawing
| ID | Description | Measurements | Tolerance |
|---|
| OD | Outside Diameter | 3.7 in. | +/- 0.020” |
| CD | Cutout Diameter | 3.0 in. | +/- 0.020” |
| MG | Magnet Diameter | | +/- 0.050” |
| HD | Hole Diameter | 0.3 in. | +/- 0.010” |
| MD | Mounting Diameter | 3.6 in. | +/- 0.010” |
| ID | Internal Depth | 0.5 in. | +/- 0.025” |
| FT | Flange Thickness | 0.09 in. | +/- 0.050” |
| NW | Net Weight | 32.0 |
