Model #MS-6-SYS
Key Features:
- 6" (156mm), 8 Ohm

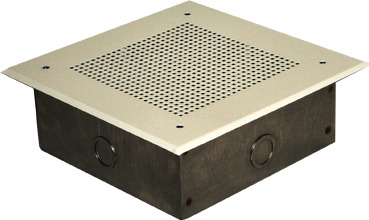

- Speaker With 70 Volt Transformer Mounted In Rugged 13" Square Recessed Ceiling Assembly For Voice And Paging
- The Grille Is Painted Beige
- 12 Watts
Product Request Form
Download PDF (Printable)
Product Specifications & Parameters
Primary Specifications
| | |
|---|
| Speakers Environment | Indoor | |
| ROHS Compliant | No | |
Technical Specifications
| | UNIT of MEASURE |
|---|
| Nominal Basket Diameter |
6.0 / 156.0 |
inch / mm |
| Rated Impedance | 8 | ohms |
| Rated Power | 12 | Watts |
| Program Power | 24 | Watts |
| Frequency Range | 70 - 10000 | Hz |
Sensitivity
(2.83 V input measured at 1 Meter) | 94 | dB SPL |
| Voice Coil Diameter | 0.8 / 20.3 | inch / mm |
| Magnet Weight | 4.8 / 136 | oz / gr |
Small Signal Parameters
| | UNIT of MEASURE |
|---|
| Resonant Frequency (fo) | 110 | Hz |
| D.C. Resistance (Re) | 6.0 | ohms |
| Mechanical Q (Qms) | 4.6 | |
| Electrical Q (Qes) | 1.6 | |
| Total Q (Qts) | 1.2 | |
| Compliance Equivalent Volume (Vas) | | ltr |
| BL Product (BL) | | T-M |
| Maximum Linear Excursion (Xmax) | | mm |
| Surface Area of Cone (Sd) | | cm2 |
Material Descriptions
| |
|---|
| Basket | Stamped Steel |
| Terminal Size | Customer Specified |
| Magnet | Ferrite |
| Voice Coil Wire | Copper |
| Voice Coil Form | Aluminum |
| Cone | Paper |
| Cone Edge | Paper |
| Dust Cap | Paper |
Drawing
| ID | Description | Measurements | Tolerance |
|---|
| OD | Outside Diameter | | +/- 0.020” |
| CD | Cutout Diameter | | +/- 0.020” |
| MG | Magnet Diameter | | +/- 0.050” |
| HD | Hole Diameter | | +/- 0.010” |
| MD | Mounting Diameter | 6.2 in. | +/- 0.010” |
| ID | Internal Depth | | +/- 0.025” |
| FT | Flange Thickness | | +/- 0.050” |
| NW | Net Weight | |
