Model #MX-65
Product Specifications & Parameters
Primary Specficiations
| | |
|---|
| Speakers Environment | Indoor | |
| ROHS Compliant | No | |
Technical Specifications
| | UNIT of MEASURE |
|---|
| Nominal Basket Diameter |
6.5 / 165.0 |
inch / mm |
| Rated Impedance | 4 | ohms |
| Rated Power | 40.0 | Watts |
| Program Power | 80 | Watts |
| Frequency Range | 30 - 20000 | Hz |
Sensitivity
(2.83 V input measured at 1 Meter) | 91 | dB SPL |
| Voice Coil Diameter | 1.0 / 25.4 | inch / mm |
| Magnet Weight | 10.0 / 0.0 | oz / gr |
Small Signal Parameters
| | UNIT of MEASURE |
|---|
| Resonant Frequency (fo) | 46 | Hz |
| D.C. Resistance (Re) | 3.3 | ohms |
| Mechanical Q (Qms) | 1.8 | |
| Electrical Q (Qes) | 0.37 | |
| Total Q (Qts) | 0.31 | |
| Compliance Equivalent Volume (Vas) | 30.0 | ltr |
| BL Product (BL) | 4.37 | T-M |
| Maximum Linear Excursion (Xmax) | 2.4 | mm |
| Surface Area of Cone (Sd) | 115.0 | cm2 |
Material Descriptions
| |
|---|
| Basket | Stamped Steel |
| Terminal Size | 0.205 X 0.02 |
| Magnet | Ferrite |
| Voice Coil Wire | Copper |
| Voice Coil Form | Aluminum |
| Cone | Titanium Electroplated Polypropylene |
| Cone Edge | Santoprene Rubber |
| Dust Cap | Felt |

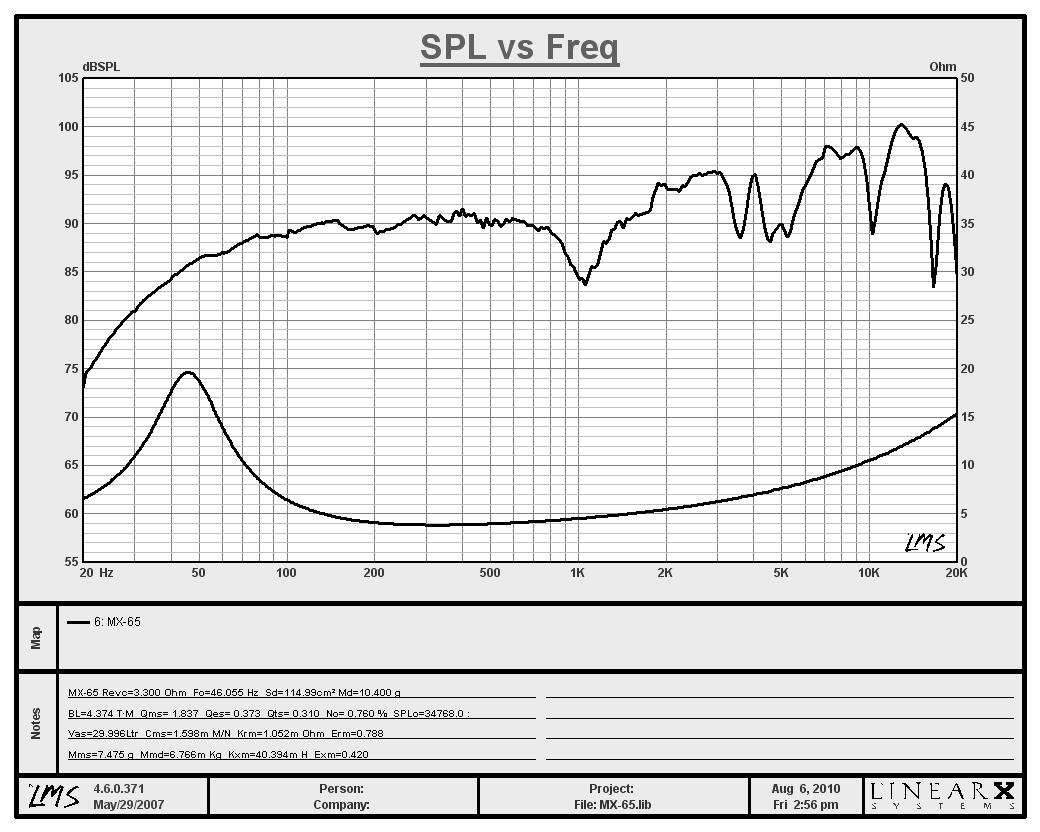

Sensitivity / Frequency
Drawing
| ID | Description | Measurements | Tolerance |
|---|
| OD | Outside Diameter | 7.0 in. | +/- 0.020” |
| CD | Cutout Diameter | 5.2 in. | +/- 0.020” |
| MG | Magnet Diameter | 3.4 in. | +/- 0.050” |
| HD | Hole Diameter | 0.2 in. | +/- 0.010” |
| MD | Mounting Diameter | 5.7 in. | +/- 0.010” |
| ID | Internal Depth | 2.0 in. | +/- 0.025” |
| FT | Flange Thickness | 1.1 in. | +/- 0.050” |
| NW | Net Weight | 972.0 |
