Quality Audio, Quality Results: Reliable Commercial Sound Solutions
When malls, schools, hospitals, and offices need high intelligibility audio for customer and employee communications, MISCO’s innovative designs and quality production processes deliver outstanding results. MISCO loudspeakers have exceptionally high sensitivity, broad dispersion, and clear intelligibility. MISCO designs and makes complete speaker solutions that include both transformer and baffle assemblies.
• High sensitivity
• Broad dispersion
• Complete speaker, transformer, and baffle assemblies
• EASE data available
• Choice of US or Asian manufacturing
• Kanban stocking programs in the US and offshore for improved cash flow and efficiency
OEM clients may choose from available MISCO designs, commission custom build-to-spec solutions, or have MISCO manufacture your build-to-print designs. Whichever path you choose, we will help you reach your performance standards and business objectives.
Building audio components and systems in the US* assures top quality, performance consistency, quick availability, and clear communications. Kanban stocking, flexible order sizes and our extensive inventory support your manufacturing efficiency and ensure longer life cycles for your products.
*Offshore sourcing with the same signature MISCO performance and consistency is also available.

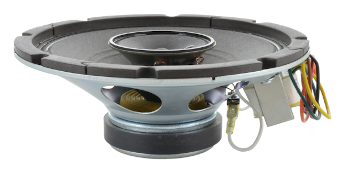

8" (203 mm) COAXIAL SPEAKER W/ TWEETER & TRANSFORMER
Oaktron by MISCO, Part #93133
The OK83-T74 is a high performacnce coaxial speaker with a mounted tweeter and transformer for full-range sound systems. Audio from this model achieves high dispersion within higher frequencies for speech and music—a perfect choice for paging, public communications, and background music applications.
- Coaxial speaker
- 8" (203 mm) stamped steel basket
- 3" (77 mm) tweeter
- 20 watts, 8 ohm, 97 dB SPL
- 4 watt transformer, 70 volt

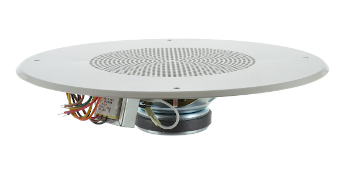

8" (203 mm) CEILING SPEAKER ASSEMBLY
Oaktron by MISCO, Part # 93120
The OK8-T74-RW is a commercial in-ceiling speaker assembly for paging systems, voice communications, and background music applications. Increase your sound system's high frequency dispersion with this driver's whizzer cone attached directly to the voice coil.
- Extended range speaker with whizzer
- 8" (203 mm) steel basket diameter
- 15 watts, 8 ohm, 90 dB SPL
- 1" copper voice coil, aluminum former
- Paper cone and whizzer, ferrite magnet
- 13" steel speaker grille, 4 watt 70 volt transformer

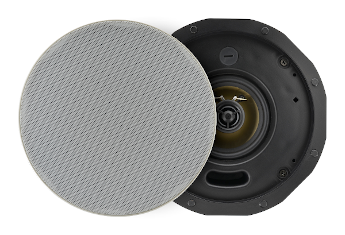

4" (100 mm) COAXIAL CEILING SPEAKER ASSEMBLY
Oaktron by MISCO, Part #93142
A wide range ceiling speaker assembly designed for high quality background music at home, in classrooms, stores, restaurants and other commercial settings. The driver is a 4", 8 ohm premium coaxial speaker built in America. It is protected by an 8.2" grille, magnetically attached with a clean and attractive white powder-coat finish.
- 4" (100 mm), 8 ohm coaxial ceiling speaker, two-way
- Titanium-plated polypropylene cone, rubber surround
- Ported speaker system
- 20 watts, 88 dB SPL
- 8.2" white magnetic speaker grille
- Phoenix-style connector
