When you partner with MISCO, you get decades of experience with public transportation audio. MISCO designs transit speakers that meet your highest priority specs. Each system’s needs are based on your unique factors and challenges, like total ambient noise in a bus or train-car, the size and power allowance for each driver, or the need for integration with digital signage and communication software. From design and prototyping, to testing and manufacturing, MISCO is here to help you create intelligible, high-quality transit sound.
Gain access to the perfect audio solution for every part of the transit industry, including stations and airports. Personal service kiosks are rapidly replacing in-person interactions, and the growing number of outdoor stations and platforms require audio built to last in a variety of harsh environments. No matter the application, we work with you ensure that your systems and devices deliver high clarity sound, while staying compact and cost-effective.
OEM clients may choose from available MISCO designs, commission custom build-to-spec solutions, or have MISCO design and manufacture a build-to-spec solution.

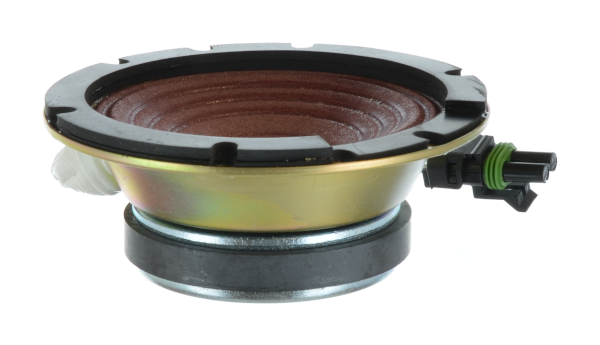

5" (127 MM), 8 OHM WATERPROOF VOICE RANGE SPEAKER
MISCO OEM, Part # JC5RTW-A
The JC5RTW-A is a voice driver and one of the most durable speakers available for outdoor voice communications—specially designed for the extreme environmental challenges of mass transit with extreme temperatures and frequency washing.
- Waterproof voice range speaker
- 5" (127 mm) steel basket diameter
- 15 watts, 8 ohm, 95 dB SPL
- Full polypropylene cone, neoprene front gasket with EZ drain cut away.
- Attached wire harness with weather-pack connector
6.5" (156 MM) SPEAKER / TRANSFORMER / GRILLE
MISCO OEM, Part # AX-1364-M
The AX-1364-M is a 6" integrated transit speaker, 70 volt transformer, and bushed aluminum grille specially designed for rail car applications. This model’s custom mounted terminal strip allows multiple connection methods to best fit a system’s electrical configuration.
- Voice range speaker
- 6" (152 mm) basket diameter
- 12 watts, 8 ohm
- 70 watt transformer, taps 1, 2, and 4 watts
- Ferrite magnet, acrylic treated paper cone
- Bushed aluminum grille
6" (156 MM), 8 OHM SPEAKER W/ TRANSFORMER
MISCO OEM, Part # N9870-1
BUILT TO ORDER
This 6”, 70 volt voice and paging speaker is designed specifically for rail car applications. A customized terminal board allows for 1/4" quick connects to attach an audio cable to any one of its four power taps: 4 watts, 2 watts, 1 watt and 0.5 watt. The dual cone design improves upper-band frequencies to enhance dispersion and off-axis sound pressure.
- Full range transit speaker
- 6" (156 mm) steel basket diameter
- 12 watts, 8 ohms, 94 dB SPL
- 70 watt transformer, 7-pronged terminal board
- 0.8" copper voice coil, aluminum former
- Felted paper cone, paper surround
